本記事の内容は TensorFlow Object Detecion API のモデルを nnoir-onnx を利用して nnoir へ変換する例についてです。
- nnoir
- nnoir-onnx
- Google Colaboratory で実行可能な変換サンプルコード
- 環境
- 後処理を取り除く
- Anchor を作成
- ONNX へ変換
- nnoir へ変換
- nnoir で推論
nnoir
ONNX から変換することのできるニューラルネットの表現です。 読みは「ノワール」で
NN Optimization IR の略です。
nnoir-onnx
ONNX モデルから計算グラフを抽出し nnoir に変換する機能を提供します。
nnoir-onnx の README.md に記載されている ONNX オペレーターを変換可能です。
Google Colaboratory で実行可能な変換サンプルコード
https://github.com/Idein/tensorflow-object-detection-api-to-nnoir にあります。
このブログで例として変換しているのは、ssdlite_mobilenet_v2_coco_2018_05_09 です。
モデルの後処理に nnoir-onnx 1.0.13 で非対応のオペレーター (Slice) が後処理に含まれていることから、非対応オペレーターが含まれない位置までを nnoir に変換し、後処理を別途記述します。
環境
Google Colaboratory に以下のパッケージをインストール後、TensorFlow Object Detection API をセットアップしています。
!pip install -U tf2onnx==1.8.5 !pip install nnoir-onnx==1.0.13 !pip install ensemble-boxes==1.0.6
後処理を取り除く
モデルの後処理に nnoir-onnx 1.0.13 で非対応のオペレーターが含まれているため、add_postprocessing_op=False を設定し取り除いています。
!python /content/models/research/object_detection/export_tflite_ssd_graph.py \ --pipeline_config_path=/content/ssdlite_mobilenet_v2_coco_2018_05_09/pipeline.config \ --trained_checkpoint_prefix=/content/ssdlite_mobilenet_v2_coco_2018_05_09/model.ckpt \ --output_directory=/content \ --add_postprocessing_op=False
tflite_graph.pb の input name と output name は Netron を利用することで確認可能です。
!tflite_convert \ --graph_def_file=/content/tflite_graph.pb \ --output_file=/content/ssdlite_mobilenet_v2.tflite \ --input_format=TENSORFLOW_GRAPHDEF \ --output_format=TFLITE \ --inference_type=FLOAT \ --input_shapes=1,300,300,3 \ --input_arrays=normalized_input_image_tensor \ --output_arrays=raw_outputs/box_encodings,raw_outputs/class_predictions
Anchor を作成
tflite_graph.pb から nnoir 推論後の後処理に利用する anchors.npy を生成します。
# https://qiita.com/PINTO/items/1312d308b553362a8ebf#%EF%BC%96appendix from tensorflow.python.platform import gfile from tensorflow.python.framework import tensor_util GRAPH_PB_PATH = '/content/tflite_graph.pb' with tf.Session() as sess: with tf.gfile.GFile(GRAPH_PB_PATH,'rb') as f: graph_def = tf.GraphDef() graph_def.ParseFromString(f.read()) sess.graph.as_default() tf.import_graph_def(graph_def, name='') graph_nodes=[n for n in graph_def.node] wts = [n for n in graph_nodes if n.op=='Const'] for n in wts: if n.name == 'anchors': print("Name of the node - %s" % n.name) print("Value - ") anchors = tensor_util.MakeNdarray(n.attr['value'].tensor) print("anchors.shape =", anchors.shape) print(anchors) np.save('/content/anchors.npy', anchors) np.savetxt('/content/anchors.csv', anchors, delimiter=',') break
ONNX へ変換
!python -m tf2onnx.convert --tflite /content/ssdlite_mobilenet_v2.tflite \ --output /content/ssdlite_mobilenet_v2.onnx --opset 13
nnoir へ変換
元の onnx モデルと変換後の nnoirファイルパスを指定し変換を行います。
!onnx2nnoir -o /content/tf1_ssdlite_mobilenet_v2.nnoir /content/ssdlite_mobilenet_v2.onnx \ --graph_name ssdlite_mobilenet_v2
nnoir で推論
nnoir ファイルをロードし、前処理した画像を渡します。
nnoir_model = nnoir.load('/content/tf1_ssdlite_mobilenet_v2.nnoir') # 前処理 image = cv2.imread("/content/models/research/object_detection/test_images/image1.jpg") image = cv2.resize(image, (300, 300)) image_rgb = cv2.cvtColor(image, cv2.COLOR_BGR2RGB) image_expanded = np.expand_dims(image_rgb.astype(np.float32), axis=0) image_normalized = (np.float32(image_expanded) - 127.5) / 127.5 box_encodings, class_predictions = nnoir_model.run(image_normalized)
Post Process を取り除いているため bounding box をデコードするコードが必要です。
参考:tensorflow/tensorflow/lite/detection_postprocess.cc
# pipeline.config に記載されている値 y_scale = 10.0 x_scale = 10.0 h_scale = 5.0 w_scale = 5.0 def decode_box_encodings(box_encoding, anchors, num_boxes): decoded_boxes = np.zeros((num_boxes, 4), dtype=np.float32) for i in range(num_boxes): ycenter = box_encoding[i][0] / y_scale * anchors[i][2] + anchors[i][0] xcenter = box_encoding[i][1] / x_scale * anchors[i][3] + anchors[i][1] half_h = 0.5 * math.exp((box_encoding[i][2] / h_scale)) * anchors[i][2] half_w = 0.5 * math.exp((box_encoding[i][3] / w_scale)) * anchors[i][3] decoded_boxes[i][0] = (xcenter - half_w) # xmin decoded_boxes[i][1] = (ycenter - half_h) # ymin decoded_boxes[i][2] = (xcenter + half_w) # xmax decoded_boxes[i][3] = (ycenter + half_h) # ymax return decoded_boxes # 作成した anchors.npy を読み込む anchors = np.load('/content/anchors.npy') box_decoded = decode_box_encodings(box_encodings[0], anchors, 1917) box_not_background = np.take(box_decoded, indexes_not_background, axis=0) box_clipped = box_not_background.clip(0, 1)
Non-maximum Suppression は ZFTurbo/Weighted-Boxes-Fusion のものを利用しています。
nms_boxes, nms_scores, nms_labels = nms(box_clipped.tolist(), scores_not_background.tolist(), labels_not_background.tolist(), iou_thr=0.5)

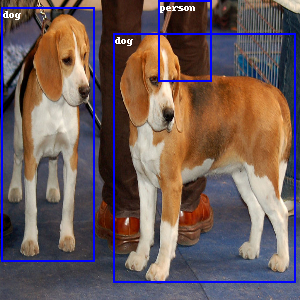

Bounding Box と label の描画
image_pil = Image.fromarray(image_rgb) # 0が背景 coco_labels = ['background'] # https://raw.githubusercontent.com/amikelive/coco-labels/master/coco-labels-paper.txt with open("/content/coco-labels-paper.txt",'r') as f: for line in f: coco_labels.append(line.rstrip()) coco_labels_length = len(coco_labels) draw = ImageDraw.Draw(image_pil) for box, scores, label in zip(nms_boxes, nms_scores, nms_labels): if label > 0 and label < coco_labels_length: xmin = box[0]*300 ymin = box[1]*300 xmax = box[2]*300 ymax = box[3]*300 draw.rectangle((xmin, ymin, xmax, ymax), outline=(0, 0, 255), width=2) draw.text([xmin+2, ymin+2], text=coco_labels[label]) image_pil
